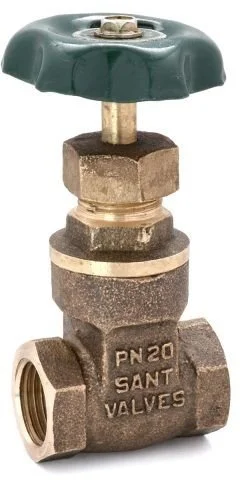

SANT BRONZE GATE VALVE STANDARD, THREADED (SBM-2)
Price List of SBM-2 Bronze Gate Valve Standard, Screwed
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1/4" | 8mm | 993 |
| 3/8" | 10mm | 993 |
| 1/2" | 15mm | 1133 |
| 3/4" | 20mm | 1595 |
| 1" | 25mm | 2256 |
| 1-1/4" | 32mm | 3068 |
| 1-1/2" | 40mm | 4586 |
| 2" | 50mm | 7123 |
| 2-1/2" | 65mm | 10778 |
| 3" | 80mm | 18135 |
| 4" | 100mm | 30061 |
Discount on Sant Valves: 45%
GST @ 18% and Freight is extra.
Product Description
Product Certification : SANT Bronze Gate Valve
Type of Pattern : Standard Pattern
Body Material cum Standard : GM ( IS:318 Gr.LTB2)
Description : Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat : Integral seat
Type of Wedge : Solid Wedge
Trim : Cu-Alloy
Gland Packing : Expanded Pure Flexible Graphite
End Details : Screwed female BSP threads to BS 21.
Testing & Certification
Body Test Pressure : 30.60kg/cm²g Hyd. (435 lbs/inch²) Hyd.
Seat & Back Seat Test Pressure : 20.40kg/cm²g Hyd. (290 lbs/inch²) Hyd.
Our Works’ Test Certificate is furnished with every supply.
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Wedge, Gland & Gland Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Stem | Forged Brass | IS:6912 FLB |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Handwheel | Cast Iron / Steel | IS:210 Gr.FG200 |
| Screw & Washer for Handwheel | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H | W |
|---|---|---|---|---|
| 8 | 1/4 | 43 | 90 | 50 |
| 10 | 3/8 | 43 | 95 | 50 |
| 15 | 1/2 | 54 | 100 | 60 |
| 20 | 3/4 | 60 | 125 | 60 |
| 25 | 1 | 65 | 135 | 65 |
| 32 | 1-1/4 | 75 | 145 | 80 |
| 40 | 1-1/2 | 83 | 160 | 80 |
| 50 | 2 | 92 | 185 | 90 |
| 65 | 2-1/2 | 105 | 215 | 105 |
| 80 | 3 | 125 | 265 | 115 |
| 100 | 4 | 140 | 310 | 145 |
The Sant SBM-2 Bronze Gate Valve is a reliable standard valve with a screwed connection. It offers efficient fluid control and is suitable for various applications. With its durable construction and smooth operation, this valve is ideal for plumbing, water distribution systems, and industrial processes. The Sant SBM-2 Bronze Gate Valve provides a dependable solution for fluid regulation.
Vijay Sales Corporation is a trusted distributor of Sant valves, specializing in providing high-quality valve solutions to diverse industries. With their extensive knowledge and expertise, they offer a comprehensive range of Sant valves, including gate valves, globe valves, check valves, butterfly valves, ball valves, and more.
As a distributor, Vijay Sales Corporation plays a vital role in connecting customers with reliable and durable Sant valves. They provide personalized guidance to help customers select the right valves for their specific applications, ensuring optimal performance and efficiency.
