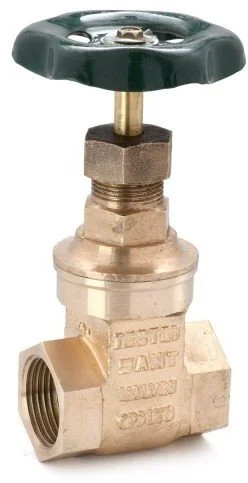

SANT BRONZE GATE VALVE PEGLAR TYPE, THREADED PN 20 (SBM-1)
Price List of SBM-1 Bronze Gate Valve Peglar Type, Screwed
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1/4" | 8mm | 735 |
| 3/8" | 10mm | 735 |
| 1/2" | 15mm | 801 |
| 3/4" | 20mm | 1075 |
| 1" | 25mm | 1733 |
| 1-1/4" | 32mm | 2054 |
| 1-1/2" | 40mm | 3167 |
| 2" | 50mm | 4337 |
| 2-1/2" | 65mm | 10768 |
| 3" | 80mm | 13394 |
| 4" | 100mm | 27054 |
Discount on Sant Valves: 45%
GST @ 18% and Freight is extra.
Product Description
Product Certification : SANT Bronze Gate Valve
Type of Pattern : Peglar Type PN-20
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat : Integral seat
Type of Wedge : Solid Wedge
Trim : Cu-Alloy
Gland Packing : Expanded Pure Flexible Graphite
End Details : Screwed female BSP threads to BS 21
Testing & Certification
Body Test Pressure : 30.60kg/cm²g Hyd. (435 lbs/inch²) Hyd
Seat & Back Seat Test Pressure : 20.40kg/cm²g Hyd. (290 lbs/inch²) Hyd.
Our Works’ Test Certificate is furnished with every supply.
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Wedge, Gland & Gland Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Stem | Forged Brass | IS:6912 FLB |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Handwheel | Cast Iron / Steel | IS:210 Gr.FG200 |
| Screw & Washer for Handwheel | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H | W |
|---|---|---|---|---|
| 8 | 1/4 | 43 | 90 | 50 |
| 10 | 3/8 | 43 | 90 | 50 |
| 15 | 1/2 | 45 | 90 | 50 |
| 20 | 3/4 | 51 | 100 | 60 |
| 25 | 1 | 64 | 110 | 65 |
| 32 | 1-1/4 | 66 | 125 | 80 |
| 40 | 1-1/2 | 70 | 142 | 80 |
| 50 | 2 | 76 | 165 | 90 |
| 65 | 2-1/2 | 95 | 210 | 105 |
| 80 | 3 | 112 | 235 | 115 |
| 100 | 4 | 127 | 325 | 145 |
The Sant SBM-1 Bronze Gate Valve is a reliable valve solution with a Peglar type design and a screwed connection. This valve ensures efficient fluid control and offers durability and easy installation. It is suitable for various industries, providing reliable sealing capabilities and smooth operation. The Sant SBM-1 Bronze Gate Valve is commonly used in plumbing, water distribution systems, and industrial processes. Its robust construction and dependable performance make it an ideal choice for regulating fluid flow. With its Peglar type configuration and screwed connection, this valve provides a reliable and efficient solution for fluid control applications.
