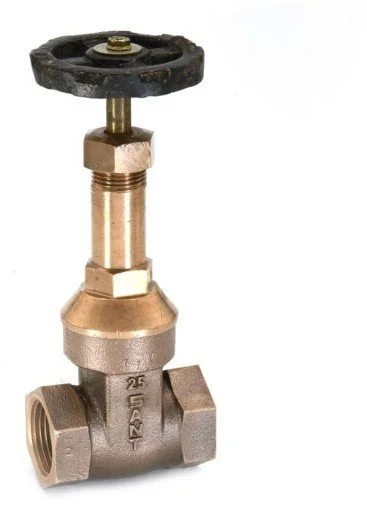

SANT BRONZE GATE VALVE RISING STEM,
THREADED IS : 778 CLASS-1 (IS-3)
Price List of IS-3 Bronze Gate Valve Rising Stem, Threaded, IS : 778 Class-1
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1/4" | 8mm | 1209 |
| 3/8" | 10mm | 1209 |
| 1/2" | 15mm | 1317 |
| 3/4" | 20mm | 1712 |
| 1" | 25mm | 2849 |
| 1-1/4" | 32mm | 4164 |
| 1-1/2" | 40mm | 4956 |
| 2" | 50mm | 8126 |
| 2-1/2" | 65mm | 14351 |
| 3" | 80mm | 20873 |
| 4" | 100mm | 37461 |
Discount on Sant Valves: 45%
GST @ 18% and Freight is extra.
Product Description
Product Certification : SANT Bronze Gate Valve
Product Standard : IS-778
Pressure/Class/Rating : Class-1
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat : Integral seat
Type of Wedge : Solid wedge
Trim : Cu-Alloy
Gland Packing : PTFE
End Details : Screwed female threads to IS:554 Parallel
Testing & Certification
Body Test Pressure : 1.5 MPa Hyd.
Seat & Back Seat Test Pressure : 1.0 MPa Hyd.
Max Working Temperature: 45°C
Our Works’ Test Certificate is furnished with every supply
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Wedge, Stuffing Box, Gland & Gland Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Stem | Forged Brass | IS:6912 Gr.FLB |
| Handwheel | Cast Iron / Steel | IS:210 Gr.FG200 |
| Gland Packing | PTFE | — |
| Screw & Washer for Handwheel | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx.) | ∅W (Approx.) |
|---|---|---|---|---|
| 8 | 1/4 | 50±1.5 | 105 | 50 |
| 10 | 3/8 | 50±1.5 | 105 | 50 |
| 15 | 1/2 | 60±1.5 | 130 | 60 |
| 20 | 3/4 | 60±1.5 | 145 | 60 |
| 25 | 1 | 70±1.5 | 165 | 65 |
| 32 | 1-1/4 | 80±1.5 | 180 | 75 |
| 40 | 1-1/2 | 90±1.5 | 210 | 90 |
| 50 | 2 | 100±1.5 | 250 | 100 |
| 65 | 2-1/2 | 105±1.5 | 300 | 105 |
| 80 | 3 | 125±1.5 | 380 | 120 |
| 100 | 4 | 160±1.5 | 480 | 145 |
The Sant Bronze Gate Valve IS-3 with a rising stem offers versatile application in various industries. Constructed with high-quality bronze, this gate valve provides excellent corrosion resistance, making it suitable for applications involving water distribution, plumbing systems, and general industrial processes. The rising stem design allows for easy visual indication of the valve position, enhancing operational control and maintenance convenience. With its reliable sealing and precise flow control, the Sant Bronze Gate Valve IS-3 ensures efficient fluid management in both on/off and throttling applications. Trust in its quality and durability for effective flow control in diverse industrial settings.
Sant valves are renowned for their outstanding quality, dependability, and performance. With a rich heritage spanning many decades, Sant valves have earned the trust and loyalty of customers both in India and worldwide. Each valve is meticulously crafted to meet rigorous national and international standards, guaranteeing exceptional reliability and durability.
The comprehensive range of Sant valves caters to a wide array of industrial applications. Whether it's butterfly valves, ball valves, gate valves, globe valves, check valves, non-return valves (NRV), or strainers, Sant valves provide comprehensive solutions tailored to meet diverse industry needs. These valves are expertly manufactured using premium materials like bronze, cast iron, cast steel, and forged steel, ensuring superior performance and longevity.
As the leading distributor of Sant valves in India, Vijay Sales Corporation takes pride in offering the complete range of Sant valves. With our extensive product line and industry expertise, we provide personalized guidance to assist you in selecting the ideal valves for your specific requirements. Trust Vijay Sales Corporation to deliver exceptional service and Sant valves that meet your flow control needs with utmost precision.
