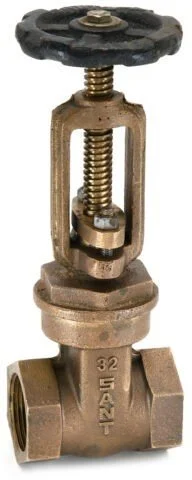

SANT BRONZE GATE VALVE RISING STEM, SCREWED IS : 778 CLASS-1 (IS-31)
Price List of IS-31 Bronze Gate Valve OS & Yoke Type, Rising Stem, Screwed, IS : 778 Class-1
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1/2" | 15mm | 1778 |
| 3/4" | 20mm | 2151 |
| 1" | 25mm | 2993 |
| 1-1/4" | 32mm | 3832 |
| 1-1/2" | 40mm | 6707 |
| 2" | 50mm | 8897 |
| 2-1/2" | 65mm | 17245 |
| 3" | 80mm | 25458 |
| 4" | 100mm | 48589 |
Discount on Sant Valves: 45%
GST @ 18% and Freight is extra.
Product Description
Product Certification : SANT Bronze Gate Valve
Product Standard : As per IS-778
Pressure/Class/Rating : Class-1
Body Material cum Standard : Gun Metal (IS:318 Gr.LTB2)
Description : Screwed In Bonnet, outside screw & Yoke Type, Rising Stem
Type of Seat : Integral seat
Type of Wedge : Solid wedge
Trim : Cu-Alloy
Gland Packing : PTFE
End Details : Screwed female threads to IS-554 Parallel
Testing & Certification
Body Test Pressure : 1.5MPa Hyd.
Seat & Back Seat Test Pressure : 1.0MPa Hyd.
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Wedge, Gland & Gland Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Stem | Forged Brass | IS:6912 Gr.FLB |
| Handwheel | Cast Iron / Steel | IS:210 Gr.FG200 |
| Gland Packing | PTFE | — |
| Screw & Washer for Handwheel | Mild Steel | — |

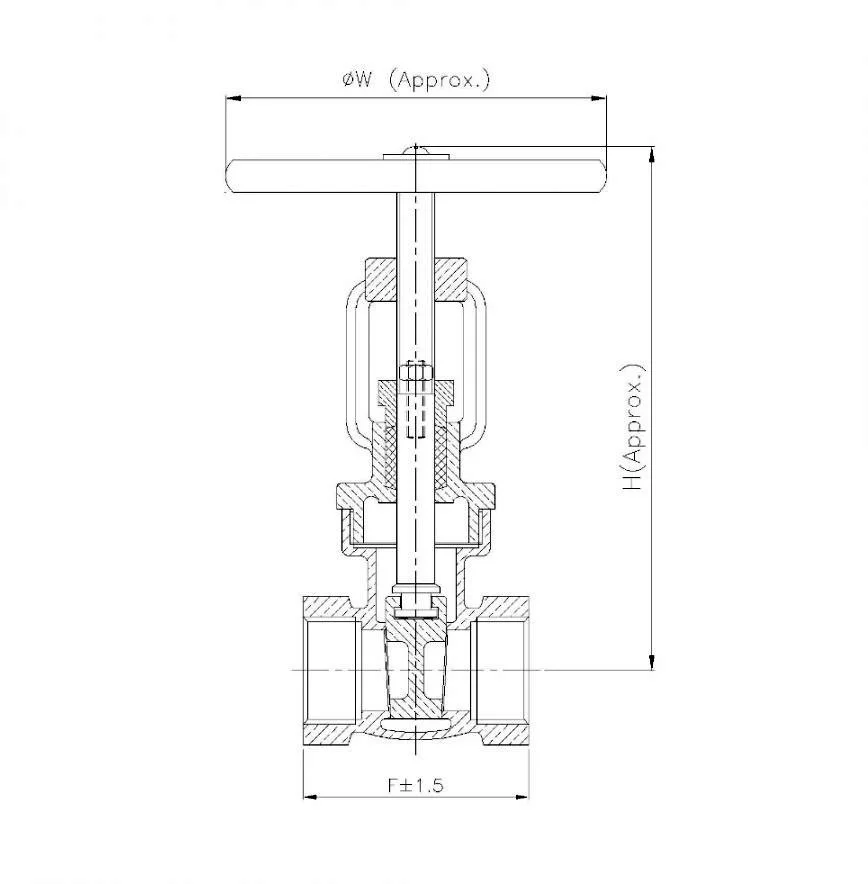

Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx.) | ∅W (Approx.) |
|---|---|---|---|---|
| 15 | 1/2 | 60±1.5 | 138 | 60 |
| 20 | 3/4 | 60±1.5 | 155 | 60 |
| 25 | 1 | 70±1.5 | 165 | 65 |
| 32 | 1-1/4 | 80±1.5 | 195 | 75 |
| 40 | 1-1/2 | 90±1.5 | 240 | 80 |
| 50 | 2 | 100±1.5 | 270 | 100 |
| 65 | 2-1/2 | 105±1.5 | 310 | 105 |
| 80 | 3 | 125±1.5 | 380 | 115 |
| 100 | 4 | 160±1.5 | 475 | 200 |
The Sant IS-31 Bronze Gate Valve ensures efficient fluid control with its OS & Yoke design, rising stem, and screwed connection. Meeting the IS : 778 Class-1 standard, this valve guarantees quality and performance. It offers durability, easy installation, and reliable fluid control. Suitable for various industries, including water distribution, plumbing, and irrigation, it effectively manages fluid flow and prevents leakage. With its robust construction and visual indication of the valve position, it facilitates accurate operation. The Sant IS-31 Bronze Gate Valve meets requirements for handling different fluids and operating conditions, ensuring optimal performance and longevity. Overall, it provides a dependable solution for fluid control across diverse applications.
Vijay Sales Corporation plays a crucial role as a trusted distributor, offering reliable and high-quality valve solutions from Sant to a diverse range of industries. Sant valves are well-known for their sturdy construction, superior sealing capabilities, and smooth operation. Crafted with precision and expertise, these valves meet rigorous standards, making them ideal for applications in water distribution, oil and gas, chemical processing, HVAC, and more.
By partnering with Sant, Vijay Sales Corporation provides customers with an extensive selection of valves, including gate valves, globe valves, check valves, butterfly valves, ball valves, and more. These valves are meticulously designed and manufactured using premium materials to withstand demanding operating conditions and ensure efficient fluid control.
