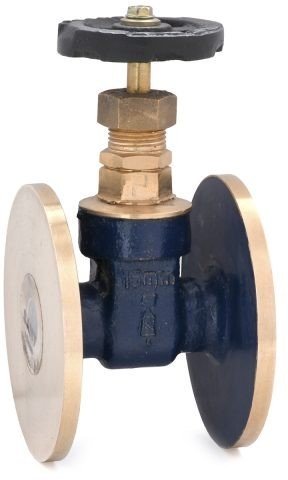

SANT BRONZE GATE VALVE NON-RISING STEM,
FLANGED IS : 778 CLASS-1 (IS-2)
Price List of IS-2 Bronze Gate Valve Non-Rising Stem, Flanged, IS : 778 Class-1
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1/2" | 15mm | 3496 |
| 3/4" | 20mm | 4419 |
| 1" | 25mm | 6204 |
| 1-1/4" | 32mm | 8773 |
| 1-1/2" | 40mm | 10694 |
| 2" | 50mm | 15330 |
| 2-1/2" | 65mm | 23320 |
| 3" | 80mm | 32935 |
| 4" | 100mm | 58764 |
Discount on Sant Valves: 45%
GST @ 18% and Freight is extra.
Product Description
Product Certification : SANT Bronze Gate Valve
Product Standard : IS-778
Pressure/Class/Rating : Class-1
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat : Integral seat
Type of Wedge : Solid wedge
Trim : Cu-Alloy
Gland Packing : PTFE
End Details : Flanges as per IS:778 Class-1 F.F. undrilled
Testing & Certification
Body Test Pressure : 1.5 MPa Hyd.
Seat & Back Seat Test Pressure : 1.0 MPa Hyd.
Max Working Temperature: 45°C
Our Works’ Test Certificate is furnished with every supply
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Wedge, Stuffing Box, Gland & Gland Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Stem | Forged Brass | IS:6912 Gr.FLB |
| Handwheel | Cast Iron / Steel | IS:210 Gr.FG200 |
| Gland Packing | PTFE | — |
| Screw & Washer for Handwheel | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx.) | ∅W (Approx.) |
|---|---|---|---|---|
| 15 | 1/2 | 72±1.5 | 105 | 60 |
| 20 | 3/4 | 76±1.5 | 110 | 60 |
| 25 | 1 | 90±1.5 | 130 | 65 |
| 32 | 1-1/4 | 100±1.5 | 140 | 75 |
| 40 | 1-1/2 | 110±1.5 | 160 | 90 |
| 50 | 2 | 120±1.5 | 180 | 90 |
| 65 | 2-1/2 | 140±1.5 | 220 | 140 |
| 80 | 3 | 150±1.5 | 250 | 175 |
| 100 | 4 | 190±1.5 | 330 | 200 |
The Sant Bronze Gate Valve IS-2 is highly versatile and finds application across multiple industries. Built with a sturdy bronze body, this valve offers exceptional resistance to corrosion, making it suitable for a wide range of applications such as water distribution, plumbing systems, and various industrial processes. Its gate valve design ensures precise flow control, making it an excellent choice for both on/off operation and throttling applications. With the Sant Bronze Gate Valve IS-2, you can achieve efficient fluid control, ensuring optimal performance and long-lasting reliability in your specific industrial settings. Trust in the quality and dependability of this valve for effective flow management in diverse industrial applications.
Sant valves are synonymous with exceptional quality, reliability, and performance. With a trusted legacy spanning several decades, Sant valves have earned the confidence and trust of customers in India and around the world. Meticulously manufactured to meet rigorous national and international standards, Sant valves offer a comprehensive range of flow control solutions.
From butterfly valves to ball valves, gate valves to globe valves, check valves to non-return valves (NRV), and strainers, Sant valves cater to diverse industrial applications. Crafted from premium materials such as bronze, cast iron, cast steel, and forged steel, Sant valves provide comprehensive solutions for various industries.
As the leading distributor of Sant valves in India, Vijay Sales Corporation proudly offers the complete range of Sant valves. With our extensive product line and expertise, we provide personalized guidance to help you choose the perfect valves for your specific requirements.
Choose Sant valves for their exceptional performance, durability, and industry-leading quality. Experience the reliability and efficiency of Sant valves in your industrial applications and trust Vijay Sales Corporation as your reliable partner for procuring Sant valves in India.
