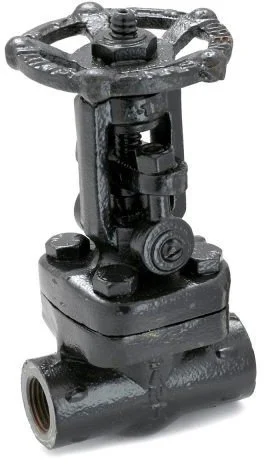

SANT FORGED STEEL GATE VALVE SOCKET END, CLASS 1500,
(IBR APPROVED) (FSV-8A)
Price List of FSV-8A Forged Steel Gate Valve Socket Ended, Class-1500
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1/2" | 15mm | 4244 |
| 3/4" | 20mm | 6083 |
| 1" | 25mm | 9556 |
| 1-1/2" | 40mm | 16670 |
Discount on Sant Valves: 45%
GST @ 18% and Freight is extra.
Product Description
Product Certification : SANT Forged Steel Gate Valve
Product Standard : Conforming to BS-5352/API 602
Pressure / Class / Rating : Class 1500
Body Material cum Standard : FCS (A 105)
Description : Bolted Bonnet O/S Yoke Type Rising Stem
Type of Seat : Renewable
Type of Disc : Solid Wedge
Trim : SS AISI-410
Gland Packing : Alloy Steel (Gr. B7/2H)
End Details : Socket Welded ends as per ASME B 16.11
Testing & Certification
Body Test Pressure : 384 barg Hyd.
Seat & Back Seat Test Pressure : 281 barg Hyd., 6.9 barg (100 Psig) AIR
Our Works’ Test Certificate is furnished with every supply.
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Gland Flange | Forged Carbon Steel | ASTM A105 |
| Body Seat Ring, Wedge, Gland, Stem, Yoke Sleeve | Stainless Steel | AISI-410 |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Gasket | Spiral Wound SS (AISI-304) Asbestos Filled / Graphite Filled | — |
| Handwheel | M.I. / D.I. | IS:14329 |
| Studs / Bolts | Alloy Steel | ASTM A193 Gr.B7 |
| Nuts | High Tensile Steel | ASTM A194 Gr.2H |
| Gland Nuts, Screw, Wheel Nuts & Washer | Mild Steel | — |
Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | H (Approx.) | W (Approx.) | A | B |
|---|---|---|---|---|---|---|
| 15 | 1/2 | 88±2 | 148 | 76 | 10 | 21.7 |
| 20 | 3/4 | 100±2 | 175 | 86 | 13 | 27.2 |
| 25 | 1 | 105±2 | 210 | 120 | 13 | 33.9 |
| 32 | 1-1/4 | 117±2 | 270 | 120 | 13 | 42.55 |
| 40 | 1-1/2 | 117±2 | 270 | 120 | 13 | 48.65 |
The Sant FSV-8A Forged Steel Gate Valve is a high-quality valve for efficient fluid control. With socket-ended connection and Class-1500 rating, it ensures secure installation. Suitable for various industries, it provides reliable sealing and smooth operation. It is a dependable choice for efficient fluid control in demanding applications.
Vijay Sales Corporation is a reputable distributor of Sant valves, offering personalized guidance and delivering high-quality solutions to various industries. With their expertise and commitment to customer satisfaction, they play a crucial role in providing reliable fluid control solutions. Vijay Sales Corporation ensures timely delivery of Sant valves through an efficient distribution network. Their dedication to excellence and reliability has made them the preferred choice for sourcing Sant valves to meet the diverse fluid control needs of industries.
